Product Materials

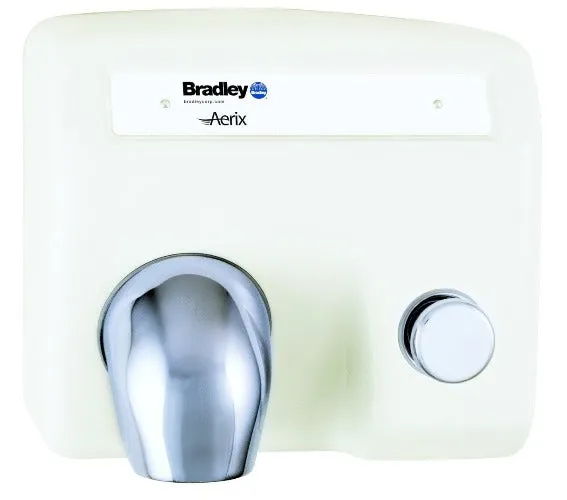

COVER: ¼" (6 mm) thick one-piece cast iron with white porcelain enameled coating. Cover fixed to the base plate with two vandal-resistant lock screws and lock with special key wrench.
NOZZLE: chrome-plated zamak. Nozzle is fixed.
MOTOR: universal-type protected by a 4-amp fuse with sealed self-lubricated ball bearings. Aluminum centrifugal turbine with double symmetrical inlet. Fireproof plastic UL 94-VO scroll fan.
HEATING ELEMENT: undulated nicrom with a safety thermostat.
PUSH BUTTON: thick chrome-plated zamak with 34-second timer.
BASE PLATE: 1 ⁄8" (3 mm) thick aluminum, with four Ø 5 ⁄16" (8mm) holes for wall mounting.
Installation: Verify all rough-in dimensions prior to installation.
Hand dryers require a dedicated circuit and must be properly grounded. GFI Circuit protection is recommended. One side of dryer should be mounted to a stud.
Operation: Press the button to activate air flow. Dryer will stop after 34 seconds.
Warranty:
- Sensors - one (1) year
- Motor Brushes - three (3) years
- All Other Components - ten (10) years.
